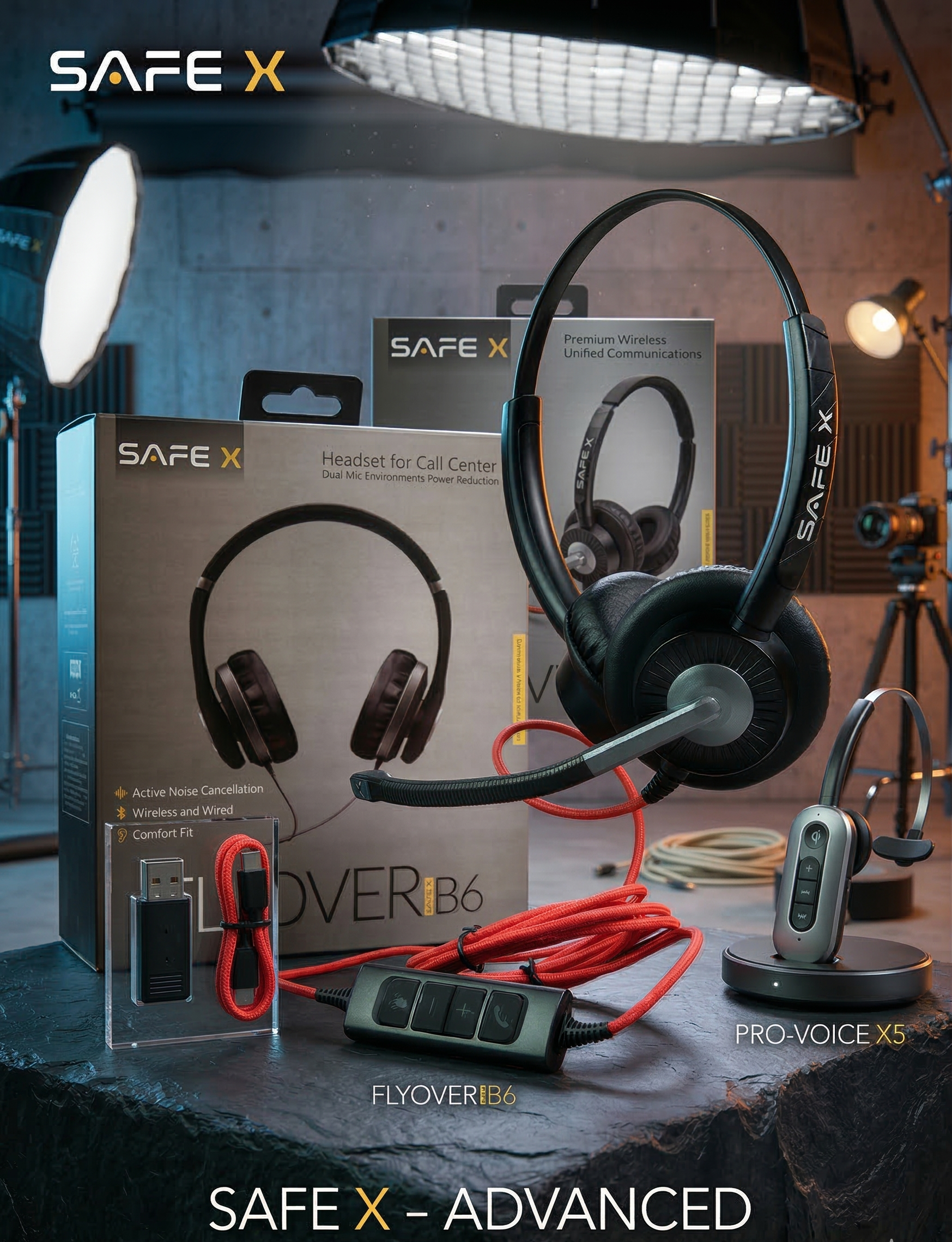

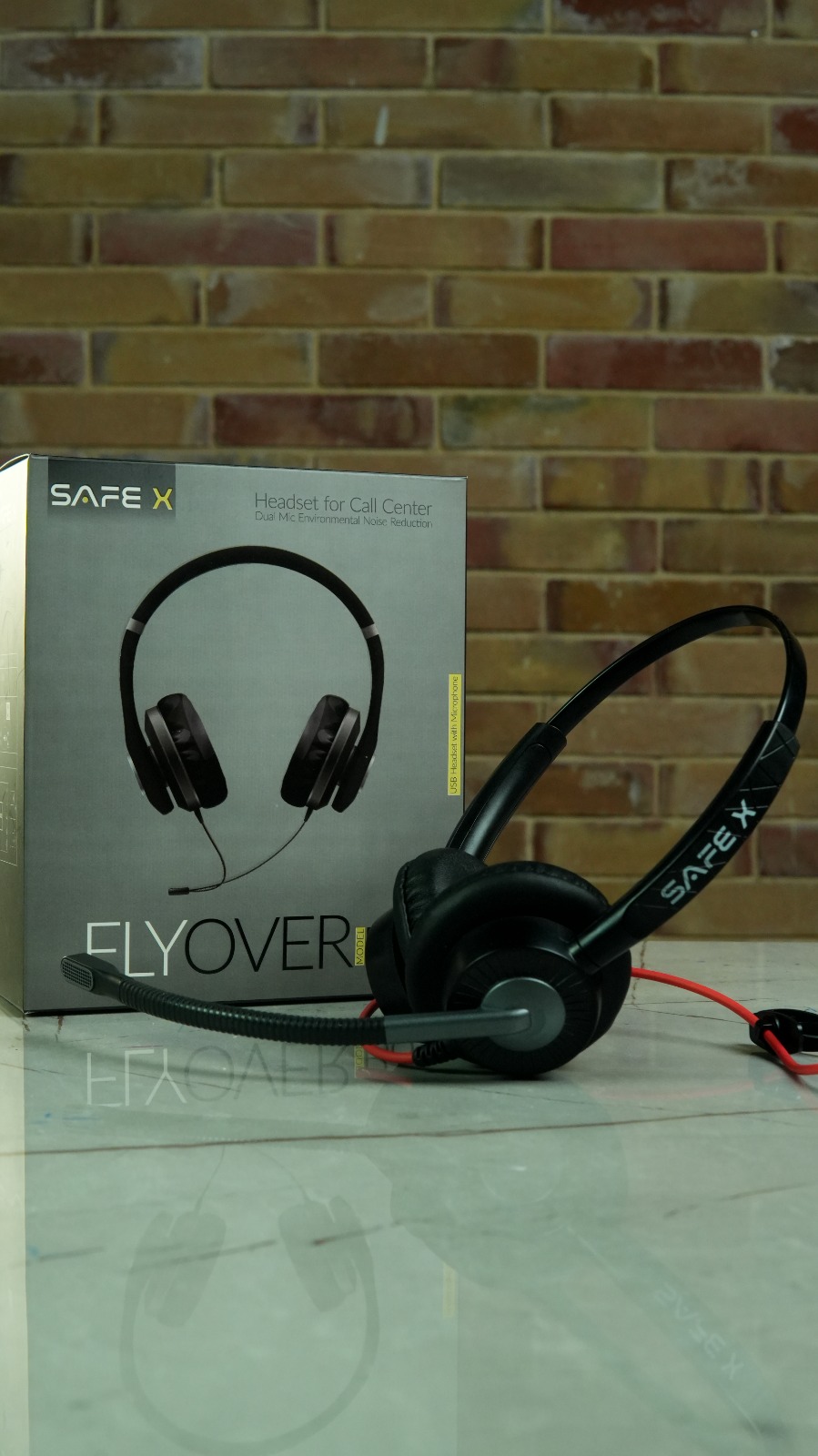

Flyover B6 SAFE X High-Fidelity USB Communication Headset

Description

The Flyover B6 SAFE X is engineered for durability and acoustic precision, making it suitable for intensive communication environments. Its robust physical architecture includes a 304 stainless steel headband reinforced with PVC and TPU components for long-lasting wear. For user comfort, the headset is equipped with $55\text{mm}$ protein leather earpads and a flexible microphone bar.

Audio Performance

• Speakers: Dual $28\text{mm}$ moving-coil drivers providing a sensitivity of $110\pm3\text{dB}$ and an impedance of $32\Omega$.

• Frequency Range: Delivers a full spectrum of sound from $20\text{Hz}$ to $20\text{KHz}$ with low distortion ($\le1\%$ at $1\text{KHz}$).

• Power Handling: Supports a rated power of $10\text{mW}$ with a maximum capacity of $50\text{mW}$.

Microphone Technology

The integrated unidirectional microphone (Model MT-UF6027L-422) is optimized for voice clarity, featuring a sensitivity of $-42\pm3\text{dB}$ and a frequency response of $100\text{Hz}$ to $10\text{KHz}$. The circuit includes integrated FET IC and ECM units with internal capacitors ($C1=10\text{pF}$, $C2=33\text{pF}$) to ensure stable signal transmission and reduced interference.

Connectivity and Control

• Interface: Standard USB-A connector.

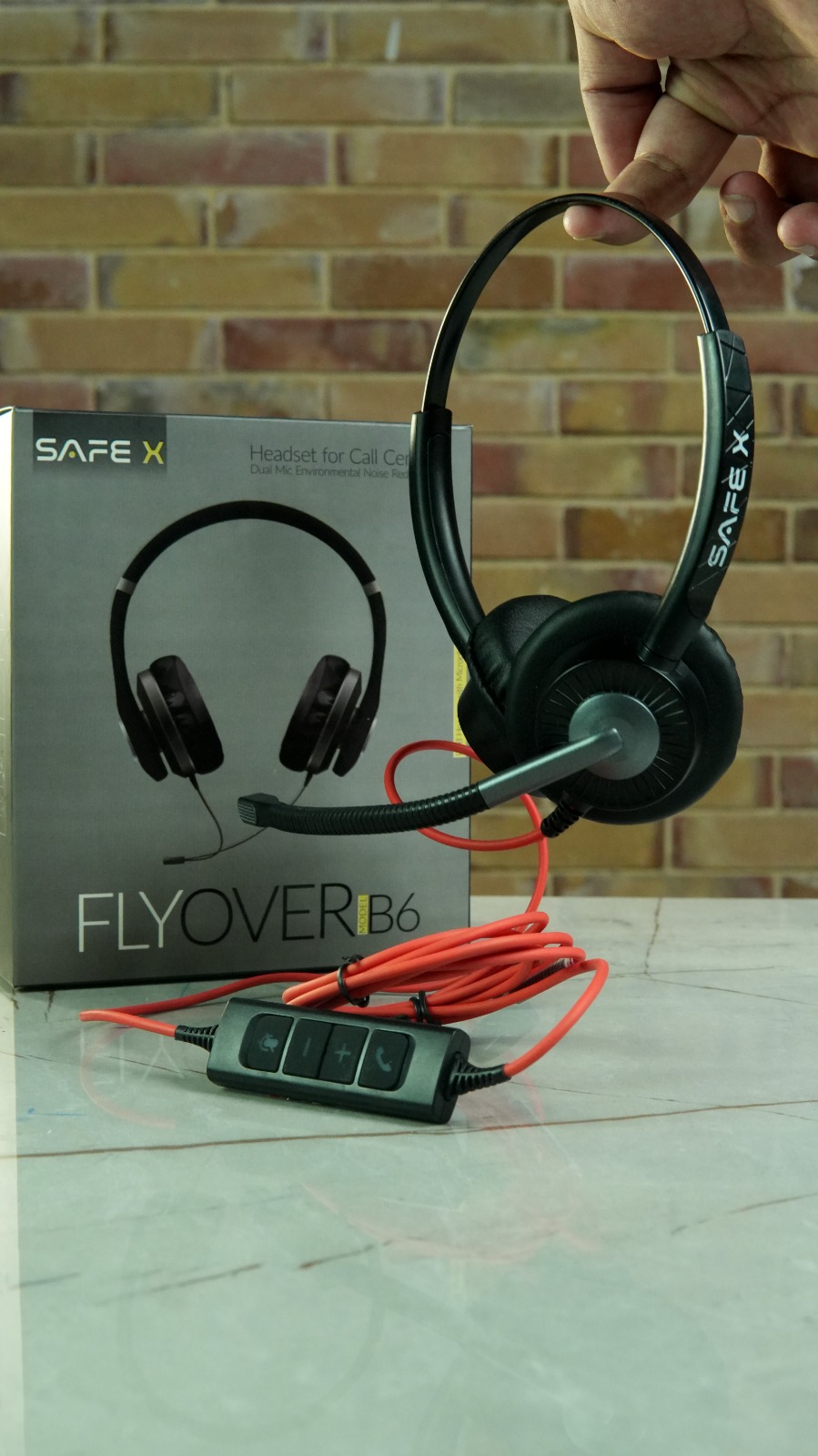

• Controller: Features an inline U30 controller with a dedicated PCB (GPD8102) for managing audio output and microphone input.

• Cabling: Utilizes high-quality PU-insulated wiring ($4\text{C}$ and $5\text{C}$ variants) with lengths up to $1450\text{mm}$ for ample movement
